Synthesis of Calcium Silicate Hydrate Compounds From Wet Flue Gas Desulfurization (FGD) Waste

Intoduction

The development of the generation of electricity in nuclear power plants, nuclear weapons testing, and the use of radionuclides in research and medicine have led to the increase production of radioactive waste materials and their release into the environment. In 2011 due to the nuclear power plant accident at Fukushima Daiichi in Japan large amount of radioactive materials were released into the atmosphere, as a result of which the surface water and soil particles were severely contaminated [1].

Among the several nuclides, ¹³⁷Cs is considered to be the most harmful among the fission product nuclides since it has an intermediate half-life time (30.17 years), decays by high-energy pathways, and possesses high solubility and chemical reactivity [2]. Therefore, it is extremely important to choose a suitable and effective method to remove cesium from aqueous systems. The physical and chemical characteristics of cesium ion make it difficult to be separated from aqueous solutions containing Na⁺ and K⁺ due to their homologous behavior.

Different methods such as ion exchange, precipitation, solidification, and stabilization can be applied for remediation or treatment of soil and water contaminated by Cs⁺. Among them, ion exchange using different materials is the most studied. Much attention has been focused on the uptake of Cs⁺ on zeolites, clay minerals, and other adsorbents [3,4].

Calcium silicate hydrate (CSH) compound has shown excellent potential in the safe disposal of low and intermediate-level radioactive waste [5]. Tobermorite is the most important compound in various CSH and can act as a cation exchanger. Aluminum‐substituted 11 A tobermorite (Al-tobermorite), in particular, shows high cation exchange and high selectivity for Cs⁺, including in solution with high concentrations of sodium [6].

The synthesis of tobermorite compounds in various conditions has been extensively studied using analytical grade reagents. Generally, Ca²⁺ and SiO₂ react to form C–S–H phases under hydrothermal conditions [7,8]. Under different hydrothermal conditions, varieties of CSH with different structures can be prepared [9].

The synthesis of CSH compounds can also be performed with by-products under hydrothermal treatment, such as newsprint recycling residue, municipal waste incineration fly ashes, oil shale ash, cement bypass dust, coal fly ash, waste container glass, etc. [10-12].

On the other hand, the large amount of by-products produced from wet flue gas desulfurization technology in coal-fired power stations results in massive accumulation of flue gas desulfurization (FGD) gypsum, which triggers a series of environmental problems [13]. Therefore, the conversion from FGD gypsum to high value-added materials can bring both economic and environmental benefits.

Thus, this study aimed to evaluate the synthesis of calcium silicate hydrate based products containing tobermorite and Al-tobermorite from the FGD and its removal ability of Cs(I) from aqueous solution was estimated to apply for treatment of the environmental contamination with radioactive Cs⁺. Also, the interaction mechanism between adsorbate and adsorbent at equilibrium time was explored by Freundlich and Langmuir models.

Materials and Methods

Materials

All chemicals that are used in this study were of analytical grade. The waste produced from the wet flue gas desulfurization process (FGD) was collected at the Presidente Médici Thermoelectric Power Plant (located in Rio Grande do Sul state, Brazil). Silica synthesized from ashes from sugarcane residue [14] and Ca(OH)₂ (Sigma-Aldrich) were used in the study. Besides, deionized water was used in all experiments.

Methods

In the first step, 10 g of FGD ash was mixed with 12 g of a mineralizing agent (NaOH or Ca(OH)₂). The grinded mixture was heated in a muffle furnace at different times and temperatures. After the cooling at room temperature, 100 mL of deionized water was added to the mixture and the product was then stirred for 18 h and heated to 100 °C in an oven at different times. The suspension was then filtered and the solid was repeatedly washed with deionized water until pH ~10 and dried at 100 °C for 24 h. Studies have shown that NaOH is an optimal mineralizing agent, which favors the dissolution of the crystalline phases of ashes during fusion at different temperatures, such as 600 °C. On the other hand, the dissolution of mullite and quartz is more difficult with calcium hydroxide, therefore requiring higher temperatures. XRD patterns in preliminary studies showed significant crystalline of phases of ashes at 600 °C with Ca(OH)₂, which results in a low yield of the final product, and so this temperature was not considered in the study. In a second test, 0.7 g of silica and 1.4 g of Ca(OH)₂ were mixed with NaOH at the fusion step in order to adjust the molar ratio of Si/Al/Ca. That adjustment aimed to reach the specifical molar ratio suitable to the synthesis of Al-tobermorite according to the literature [15-17]. The amount of 0.7 g of silica was added to the samples in which calcium hydroxide was used as a mineralizing agent.

In a third test, the fusion step was carried out at temperatures of 800 ºC and 900 ºC and without a mineralizing agent. The intention at this stage was to evaluate the necessity of the mineralizing agent, and if solubilization of the crystalline phases would take place by only increasing the temperature at the fusion step of the synthesis. Experimental conditions of synthesis of calcium silicate hydrate based products (CSHP) are shown in Table 1.

Characterization of Materials

Samples were characterized in terms of chemical composition by X-ray fluorescence (Rigaku – RIX 3000). A scanning electron microscope was used to verify the morphology of the samples (Philips XL 30). The mineralogical composition was determined by X-ray diffraction (Rigaku – Multiflex) using Cu Kα radiation at 40 kV and 20 mA.

The particle size distribution for the samples was determined using a laser diffraction particle size analyzer (Malvern – Mastersizer 2000). The pH measurements were done by using a shaking table (Ética - 430), a shaker machine (Orbital Shaker incubator – SF-670) and a pH meter (MS Tecnopon - MPA 210 / TPS – WP-81). The real density of samples was determined by a helium pycnometer (Micromeritcs Instrument Corporation - Accupyc 1330).

In cation exchange capacity (CEC) measurements, 1 g of each sample was saturated with 100 mL of sodium acetate solution (1 mol L^-1), washed with 1 L of distilled water, dried, and then mixed with 100 mL of ammonium acetate solution (1 mol L^-1). The sodium ion concentration of the remaining solution was determined by inductively coupled plasma optical emission (ICP-OES – Spectro - Arcos).

Three titrant solutions were used to evaluate the pH changes by using the zeta potential (two acidic solutions of HNO₃ 0.025 and 0.25 mol L^-1 and an alkaline solution of NaOH 0.25 mol L^-1. The pH ranges studied were between 2 and 12, varying from 1 to 1. All solutions were prepared with MilliQ water. The equipment used for the measurements was the Zetasizer Nano ZS-90 with a multi-purpose MPT2 titrator (Malvern Instruments - Multipurpose Titrator).

Cesium Adsorption Studies

Adsorption Isotherms

Batch processes for cesium adsorption were performed by shaking 0.05 g of adsorbent material and 10 mL of cesium chloride and ¹³⁷Cs (used as a radioactive tracer for the measurements) solutions with different and known initial concentrations. A stock solution of ¹³⁷Cs was prepared from a standard solution of 1 mCi mL^-1 (20 µL of the standard solution were used to prepare 1 mL of the stock solution). The solutions with concentrations ranging from 100-6000 μmol L^-1 of CsCl and containing 10 µL of the ¹³⁷Cs tracer stock solution were prepared. The adsorbent material and the cesium solutions were stirred at 120 rpm for 24 h and room temperature. Then, the supernatants were separated from the adsorbent by centrifugation and the concentrations were determined by a gamma spectrometer (HPGe - GX1518) coupled to a multichannel acquisition system (Canberra Inc.). Tests were performed in duplicate for each concentration of Cs.

The interaction mechanism between adsorbate and adsorbent at equilibrium time was explored by Freundlich and Langmuir models [18,19]. The Chi-square (c²) test was employed, the lowest values were used to validate the applicability of isotherms tested [20].

Adsorption Studies in Saline Medium

Cesium adsorption studies were carried out from two different saline matrices: one containing a solution of NaCl (0.02 mol L^-1) and the other containing a sample of real seawater, collected in Santos coast, located in São Paulo State, Brazil. Real seawater was filtered before the tests.

All tests were performed with Cs⁺ solutions with 2x10^-4 mol L^-1 of concentration and ¹³⁷Cs as a radioactive tracer. The adsorbent material and the saline cesium solutions were stirred at 120 rpm for 24 h at room temperature. Then, the concentrations were determined in the similar way as in the adsorption isotherms procedure. Tests were performed in triplicate.

The amount of the Cs⁺ uptake and percentage of Cs⁺ removal by the adsorbent were calculated by applying eqn (1) and (2), respectively, where q is the adsorbed amount of adsorbate per gram of adsorbent (µmol g^-1), C₀ and Ct are the concentrations of the adsorbate in the initial solution, and at any time (t), respectively (mg L^-1), V is the volume of the adsorbate solution added (L) and M is the amount of the adsorbent used (g).

\begin{equation} q=\frac{V\left ( C_{o}-C_{t} \right )}{M} \tag{1} \end{equation}

\begin{equation} R=\frac{100\left ( C_{o}-C_{t} \right )}{C_{o}} \tag{2} \end{equation}

Distribution coefficient Kd, signifying the affinity and selectivity for Cs+, was calculated by the equation (3), where Ci and Ce are the initial and final concentrations of Cs+ (mg L-1), V is the volume of the tested solution (L), and m is the weight of the adsorbent (g).

\begin{equation} Kd=\left [ \frac{Ci-Ce}{Ce} \right ]\times \frac{V}{m} \tag{3} \end{equation}

Results and Discussion

Characteristics of FGD

Chemical Composition

The chemical composition of FGD waste obtained by X-ray fluorescence is given in Table 2, and shows that the major constituents were silica, alumina, and calcium, iron and sulfur compounds. The high magnesium content is justified because in the wet process Mg²⁺ is used to improve the oxidation efficiency of coal combustion products, thus increasing the amount of magnesium sulfate produced. The percentage of FGD elements is within the range usually encountered in this type of residue and reported in the literature [21].

Mineralogical composition

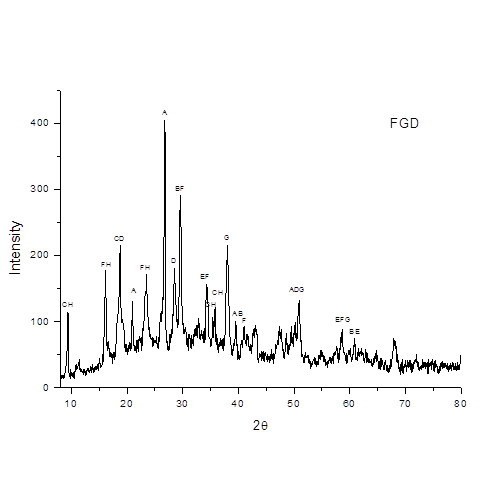

Figure 1 shows X-ray diffraction patterns (XRD) of the FGD sample, and the respective crystalline phases are identified in Table 3. The sample presented an ettringite phase (which contains calcium and sulfate in its structure) and brucite phase, which are commonly found in residues from the process of wet desulfurization [22].

Figure 1.XRD Pattern of FGD waste (A = Quartz, B = Calcite, C = Chabazite, D = Portlandite, E = Sodium carbonate, F = Brucite , G = Ettringite and H = Hydrated hydroxide of calcium oxide and aluminum)

Particle size distribution

Figure 2 reports the differential and cumulative particle size distributions for FGD. The differential size distribution of the material is relatively uniform with the expected normal bell-shaped distribution curve. The particle size distributions of material are given in Table 4. These distributions specify that the majority of particles (90%) lie below 192 µm. It was reported that gypsum from full-scale plants present d₅₀ around 34.9 μm [23]. The D_3.2 diameter value, calculated by the equipment, is based on the average surface area of the particles and usually is used to design particle retention equipment. The D_3.2 and D₉₀ values found in this study is in accordance with the values found for similar wastes reported in the literature [24].

Figure 2.Tabel 4. Particle size distribution of FGD waste

Morphological characterization

The scanning electron micrographs (SEM) of the FGD waste are shown in Figure 3. The FGD sample presented heterogeneous particles with different diameters and shapes. Smooth surface spheres are usually silico-aluminous compounds, whereas irregular shapes particles are usually unburnt coal, magnetic particles of iron oxide, amorphous particles which suffered a rapid cooling, or other types of minerals. In addition to the structures already mentioned, a large presence of chabazite, brucite and rhombohedral crystals can be observed in Figure 3(b) [25].

Figure 3.SEM micrographs of FGD waste sample (a) expanded by 9000X; (b) expanded by 15.000X.

Physicochemical properties

The physical and chemical properties of the FGD sample are shown in Table 5. The real density values are in accordance with literature which establishes that materials with the presence of crystalline phases such as mullite and quartz present density between 2.0 to 2.5 g cm^-3 [26].

According to Kost et. al [27], the pH of the FGD residues depends first on the adsorbent used during the desulfurization process (usually calcite, dolomite or calcium hydroxide) and then on the type of technology. The authors concluded that the high pH value for most residues is due to the presence of Ca and Mg oxides and hydroxides. When products are exposed to water and CO₂, they are converted to carbonates by carbonation reactions and as a consequence, the pH value of the aqueous solution increases. Usually, this type of waste has a pH range of 9 to 14. The residue may also contain an excess of alkaline adsorbent that did not react with SO₂ during the coal combustion [27]. Samples of silicon-aluminous coal ash from different Brazilian thermoelectric plants showed CEC values very close to those found for the FGD residue [28].

Characterization of synthesized products from FGD

The composite microstructure of CSHP was firstly examined considering the formation of crystalline phases. In the set of experiments by using 900 °C and 800 °C without a mineralizing agent (Table 1, CSHP-1-4), the XRD patterns of the products (not shown) indicated the formation of several complex crystalline structures of Ca-Si-Al type, mainly prehnite (Ca₂Al₂Si₃O₁₀(OH)₂) and gehlenite (Ca₂Al₂SiO₇), on the other hand, tobermorite compounds were not obtained. The process resulted in a solid-solid reaction and, once the crystalline structures were formed during the fusion, there was only an intensification of the reaction during the hydrothermal treatment process.

In the second set of experiments, Ca(OH)₂-activation experiments were carried out at 750 °C (Table 1, CSHP-5-8), and the XRD patterns of the products (not shown) indicated the formation of portlandite (Ca(OH)₂) as the main phase, and compounds of alumino-silicates and calcium silicates in lesser quantity when compared to the other phases. There was no influence on the crystallization time. The sample that was not subjected to the hydrothermal treatment (Table 1, CSHP-5) also showed the presence of quartz (SiO₂), periclase (MgO), and calcium oxide (CaO). These compounds were in the raw material as hydrated form and remained in the products after the synthesis (they were only dehydrated).

In the set of experiments carried out with the fusion process at 750 °C and NaOH as a mineralizing agent (Table 1, CSHP-10-12), the XRD patterns of the products (not shown) indicated the formation of hydrocalumite (Ca₂Al(OH)_6.5Cl_0.5.3H₂O), Al-tobermorite (Ca₅Si₅Al(OH)O₁₇.5H₂O), tobermorite 9A (Ca₅Si₆(OH)₂O₁₆.4H₂O), brucite (Mg(OH)₂) and katoite (Ca₃Al₂(SiO₄).(OH)₈) as the main phases. There was no influence on the crystallization time. The sample which was synthesized only by using the fusion step (CSHP-9) presented periclase, sodium hydroxide, calcium silicate, and sodium aluminate as the main phases.

The experiments carried out with the fusion step at 600 °C (by using different reaction times), with NaOH as mineralizing agent, and without the adjustment of the molar ratio (Table 1, CSHP-13 and CSHP-15), presented XRD patterns of the products with the predominance of CSH compounds, including tobermorite, Al-tobermorite and hydrated calcium aluminate (Figure 4). In addition, the fusion time did not influence the final result.

Figure 4.XRD Patterns of the CSHP products synthesized by using the fusion step at 600 °C (A = Tobermorite 9A- Ca5Si6(OH)2O16.4H2O, B = Al-tobermorite - Ca5Si5Al(OH)O17.5H2O, C = Hydrated magnesium aluminum hydroxide - MgAl(OH)14.H2O, D = Periclase - MgO, E = Hydrated calcium silicate Ca1.5SiO3.5.H2O, and F = Sodium calcium aluminosilicate - Na0.45Ca0.55Al1.55Si2.45O8)

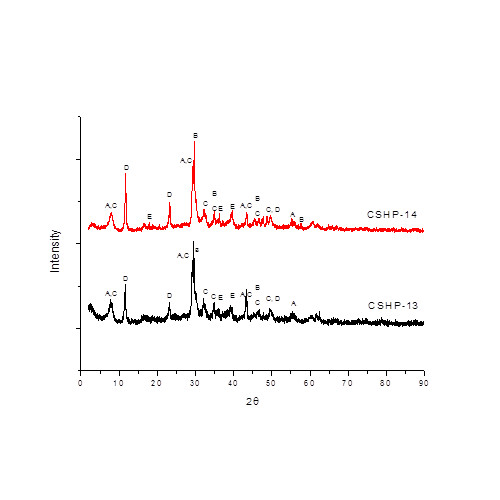

The XRD patterns of the samples synthesized without adjustment of the molar ratios (Table 1, CSHP-13) and with adjustment by the addition of Ca and Si (Table 1, CSHP-14), did not present relevant differences between the formed phases, as shown in Figure 5. Both samples presented tobermorite and Al-tobermorite as main phases.

Figure 5.XRD Patterns of the CSHP products synthesized by using the fusion step at 600 °C and with and without Ca and Si addition (A = Tobermorite 9A - Ca5Si6(OH)2O16.4H2O, B = Al-tobermorite Ca5Si5Al(OH)O17.5H2O, C = Tobermorite - Ca2.25(Si3O7.5(OH)1.5)(H2O), D = hydrogensilicate H2Si2O5)

Selection of Synthesized Products

The products selected for the cesium adsorption studies were obtained under fusion step temperature of 600 ºC for 1 h, by using NaOH as a mineralizing agent, without and with the addition of calcium and silicon (Table 1, CSHP-13 and CSHP-14 , respectively). These products were selected because they presented the predominance of tobermorite and Al-tobermorite.

The determination of the cation exchange capacity (CEC) was carried out to evaluate the affinity of the synthesized materials in ions removal (Table 6). Sodium ions can compete with cesium ions for the active sites of the adsorbent material, thus a low CEC can indicate satisfactory cesium removal efficiency [29,30]. CEC values between 0.12 and 0.16 meq g^-1 for Tobermorite and between 1.28 and 1.97 meq g^-1 for Al-Tobermorite have been reported in the literature [31]. Table 6 results indicate that both synthetic CSHP can present satisfactory cesium adsorption efficiency [29,30].

The determination of zeta potential was evaluated by the pH changes (between 2 and 12, and varying from 1 to 1) for the CSHP-13 and CSHP-14 samples. The temperature of the tests was 25 °C. Thus, it was possible to determine the pH range where the synthesized materials have the most appropriate surface charge for the Cs⁺ removal. The results are shown in Fig. 6, including the raw material (FGD) for comparison.

Figure 6.Zeta potential values for the products synthesized from FGD waste

Figure 6 shows that the most interesting pH range for Cs⁺ adsorption tests, which is where the material charge value is more negative, it is between pH 5 to 8 for the CSHP-13 sample, while CSHP-14 sample presented a wider pH working range (between 5 to 10). The synthesized products showed lower negative charges values when compared to the raw material.

Cesium Adsorption Studies

CSHP-14 sample was used as an adsorbent material for the removal of Cs⁺ from the aqueous solution because presented less affinity for the sodium ions and higher values of negative surface charge.

Adsorption isotherms

The Langmuir and Freundlich models were adjusted to experimental data through the nonlinear estimation method. A plot was drawn between C_e (the equilibrium concentration of the solute in the bulk solution) versus q_e (the amount of solute adsorbed per unit weight of adsorbent at equilibrium) using the experimental and predicted value (Figure 7). The regression coefficients for both adjustments were determined using nonlinear expression [18,19] and are shown in Table 7.

Figure 7.Adsorption isotherm of Cs+ onto CSHP-14

Analyzing Figure 7, it can be seen that Freundlich model simulated more adequately the experimental adsorption isotherm data. Table 7 shows that the Freundlich model presented the highest value for R_aj² (coefficient of determination) and the lowest value for χ² (chi-square ) when compared to the Langmuir model and, therefore, is the most appropriate model to describe the adsorption balance of Cs⁺ onto CSHP-14. Thus, homogeneous, and heterogeneous distributions can occur by adsorption in monolayer and multilayer, in a process that can occur simultaneously or subsequently in order of time, both at random [32].

Adsorption Study of Cs+ in Saline Medium

It is a challenge to remove Cs⁺ from seawater because of its low concentrations (usually between 10^-3 to 10^-5 mol L^-1) along with many other ionic species that are in high concentrations (mainly Na⁺), which compete for the active sites of the adsorbent. Therefore, Cs⁺ selectivity of various adsorbents can decrease significantly with high salt concentrations [2,28,33].

The results of Cs⁺ adsorption onto CSHP-14 obtained in aqueous and saline media are shown in Table 8. The adsorbent material showed a high Cs⁺ adsorption capacity in deionized water and a decrease of 56% and 62% in saturated media with the Na⁺ ions and seawater, respectively.

Tobermorite substituted by aluminum has a high adsorption capacity and high selectivity for Cs⁺, even when in a saturated medium with a high concentration of sodium [6]. The synthesized material is not a pure Al-tobermorite and, therefore, the mixture of materials does not present the same degree of selectivity to Cs⁺ ions. However, even though the degree of selectivity of the high-purity material has not been reached, the use of material synthesized from FGD can still be viable when compared to adsorbent materials from other residues [3].

Conclusions

The formation of tobermorite and Al-tobermorite was identified in the products obtained from wet flue gas desulfurization waste using the alkali fusion method with NaOH. The optimal fusion temperature was 600 °C for 1 h. The required corresponding crystallization temperature was 100 °C and the crystallization time was 24 h. The synthesized material revealed high selective uptake for Cs⁺ in water. The Langmuir and Freundlich adsorption isotherms were applied to equilibrium data, and the data were found to fit the Freundlich model. The maximum adsorption capacity of Cs⁺ onto the synthesized material, as calculated from the Langmuir model, is 1949 µmol g^-1. It was found that the synthetic material showed a satisfactory Cs⁺ removal from both deionized water and seawater. The conversion from FGD gypsum to CSH compounds shows both economic and environmental benefits when low-grade wastes are used as a valuable absorbent.
